Fire resistant low voltage single core cable pvc sheath xlpe insulation cable for translate electric
Model no.: NH-YJV
Conductor material: Copper(Cu)
Condutor type: Stranded
No. of cores: Single core
Cross section area: 10-400mm2
Rated voltage:0.6/1KV
Insulation: Irradiated XLPE
Jacket: Low smoke zero halogen fire resistance flame retardant PE/PO or PVC
Cable identification
- Cores: Red, yellow, blue, black, green/yellow (by color tape, except green-yellow core)
- Outer sheath: orange or as order
Normal construction
3+1,4+1,3+2,1core,2cores,3cores,4cores,5cores and etc.
Norminal cross-section of conductor(mm2):
1,1.5,2.5,4,6,10,16,25,35,50,70,95,120,150,185,240,300, 400
Appliations
1.Application scope
LSOH or LSZH fire resistant Wire and Cable can produce little smoke and innocuous gas without halogen when combustion.
The cable can be widely used in high-rise building, hospital,large-sized library, gymnasium, disaster prevention command and dispatchbuilding, station, civil airfield, passenger waiting room,emphases cultural relic, subway, underground shop or the crowded public concourses.
2.Application characteristics
1)Rated voltage UO/U:450V/750V; AC polyolefin UO/U is 0.6/1kv;
2)Temperature range during operation:-20 centigrade-90 centigrade or -40 centigrade-105 centigrade;
3)Recommended bending radius:non-armoured cable should not less than 6 times of cable diameter, armoured or copper tape shielded cable should not less than 12 times of cable diameter.
Standards
BS 7846; IEC 60331; BS 6387

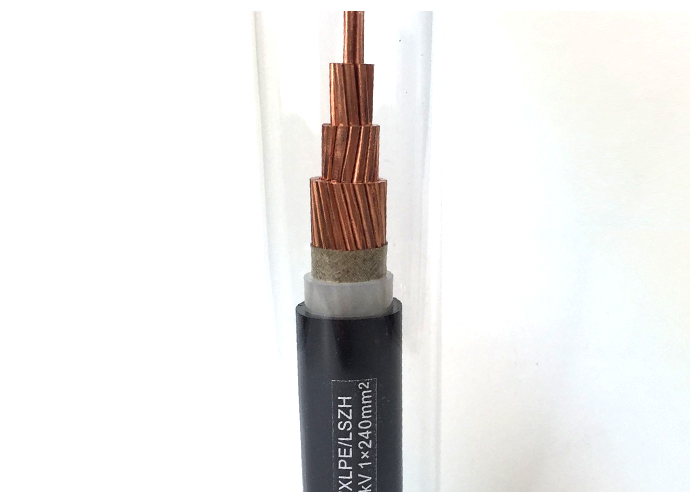

Construction
Cu/Mica/XLPE/LSZH/SWA/LSZH
(1) Conductor: Plain annealed copper (class 2, normal
stranded or compact stranded)
(2) Fire barrier: Mica tape
(3) Insulation: XLPE
(4) Filler, binder and inner covering: PP, PET, LSZH
(5) Armour: Steel wire
(6) Outer sheath: LSZH
Characteristics
- Voltage rate: 0.6/1kV
- Maximum conductor temperature: 900C in normal operation; 2500C in short-circuit for 5s max.
- Minimum bend radius: 12xD (twelve times overall diamerter of cable)
- Fire resistant: IEC 60331; BS 6387
- Flame retardant: BS EN 60332-1; IEC 60332-1
- Corrosive and acid gas: BS 7846; BS 50267-2-1; IEC 60754-1&2
Smoke emission: BS 7846; BS EN 50268-2; IEC 61034-2
Notes: * All conductor in accordance with IEC 60228. Compacted conductor (C.C) or non-compacted depend on order.
• Besides the above mentioned list we can also provide other sizes depending on customer’s requirement.
