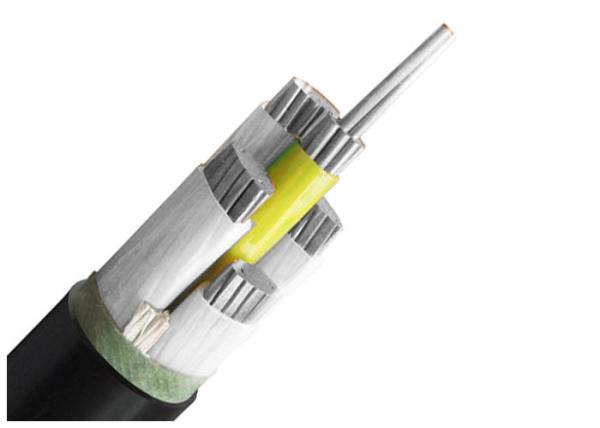

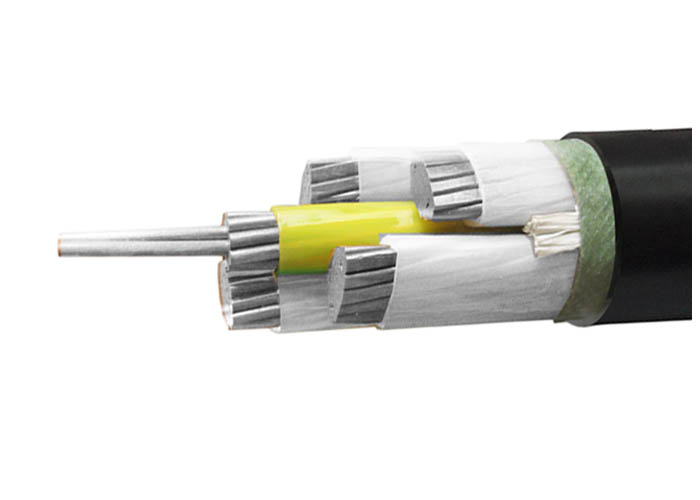

Aluminum Conductor XLPE Insulated Power Cable 5 Cores XLPE Insulation PVC Sheath

  • 1
  • 2
  • 3

Brand Name : SHANCABLE

Model Number : YJLV

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Shanghai, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Packaging Details : Wooden Drum

Model name : LV Aluminum Cable

Rated Voltage : Low Voltage

Insulation : XLPE

Conductor : AL, Aluminum

Sizes : 1~ 630mm2

Cores : 5 Cores

Sheath Material : PVC, PE, LSOH

Standards : IEC / BS / IS / VDE

Corporation : shenghua group

Brand : Sh Cable

Contact Now

Aluminum Conductor XLPE Insulated Power Cable 5 Cores XLPE Insulation PVC Sheath



Construction

Conductor

Compact Stranded Aluminum Conductor, Class 2 as per IEC 60228

Circular solid AL Conductor, Class 1 as per IEC 60228



Insulation

XLPE (Cross-linked polyethylene), or PVC

Separate Screen

Copper Tape (optional)

Filler

Fillers strip, Yarn, or Paper

Wrapping Tape

Non woven

Overall Sheath

PVC or PE or LSOH







Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.





Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request





Technical data

Rated voltage: Low Voltage, 0.6/1kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables





PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.





Type Description & Application Occasion



YJV

Copper Conductor, XLPE Insulated, PVC Sheathed Power Cable

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

YJLV

Al. Conductor, XLPE Insulated, PVC Sheathed Power Cable

YJY

Copper Conductor, XLPE Insulated, PE Sheathed Power Cable

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

YJLY

Al. Conductor, XLPE Insulated, PE Sheathed Power Cable

YJV22

XLPE Insulated,Steel Tape Armored,PVC Sheathed Power Cable

Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.

YJLV22

Al. Insulated,Steel Tape Armored,PVC Sheathed Power Cable

YJV32

Copper Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable

Apply to shafts,water and soil,able to bear the larger positive pressure.

YJLV32

Al.Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable

YJV42

Copper Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable

For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.

YJLV42

Al.Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable
