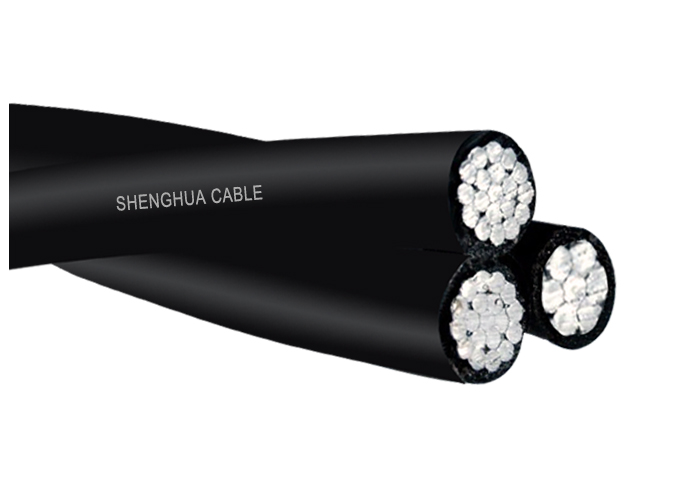

0.6/1 KV Aluminium Conductors XLPE Insulated Aerial Bundled Cables
NFA2X NFC33-209, TS HD 604 S1
NFC33-209, TS HD 604 S1, GB/T 12706.1-2008.
CE, CCC, KEMA /
0.6/1kV, suitable for underground burying
Constructions
Conductor: Plain circular stranded aluminum conductor, conforms to IEC 60228 class 2
Insulation: XLPE
Sheath: PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or at request
Applications
ABC cable especially used at areas where the cost of under ground networks is expensive and also for electrification of rural areas like villages .
Standards
International: NFC33-209, TS HD 604 S1
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6/1kV
Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (250℃ when section-area below 300mm2,)
Certificates
CE, RoHS, CCC, KEMA and more others at request
Schedule of technical particulars
| Phase conductor | | | | | | | | | |
| Nominal cross-sectional area | mm² | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Minimum number of wires | | 6 | 6 | 6 | 12 | 15 | 15 | 30 | 30 |
| Nominal insulation thickness | mm | 1.2 | 1.2 | 1.4 | 1.4 | 1.6 | 1.6 | 1.8 | 2.0 |
| Diameter of insulated core | mm | 8.5 | 9.5 | 11.2 | 13.0 | 15.1 | 16.6 | 18.4 | 20.6 |
| Max. DC resistance at 20℃ | ohm/km | 1.20 | 0.868 | 0.641 | 0.443 | 0.320 | 0.253 | 0.206 | 0.164 |
| Current rating at still wind, ambient | A | 84 | 104 | 129 | 167 | 209 | 246 | 283 | 332 |
| temperature=30℃ |
| Conductor temperature=75℃ | | | | | | | | | |
| Messenger conductor | | | | | | | | | |
| Nominal cross-sectional area | mm² | 25 | 25 | 35 | 50 | 70 | 70 | 95 | 120 |
| Minimum number of wires | | 6 | 6 | 6 | 6 | 12 | 12 | 15 | 15 |
| Nominal insulation thickness | mm | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
| Diameter of insulated core | mm | 8.5 | 8.5 | 9.5 | 11.2 | 13.1 | 13.1 | 15.1 | 16.6 |
| Max. DC resistance at 20℃ | ohm/km | 1.312 | 1.312 | 0.943 | 0.693 | 0.469 | 0.469 | 0.349 | 0.273 |
| Calculated breaking load | kN | 6.4 | 6.4 | 8.9 | 12.1 | 18.0 | 18.0 | 24.2 | 30.8 |
| Street lighting conductor | | | | | | | | | |
| Nominal cross-sectional area | mm² | 25 | 25 | 35 | 50 | 70 | 70 | 95 | 120 |
| Minimum number of wires | | 6 | 6 | 6 | 6 | 12 | 12 | 15 | 15 |
| Nominal insulation thickness | mm | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
| Diameter of insulated core | mm | 8.5 | 8.5 | 9.5 | 11.2 | 13.1 | 13.1 | 15.1 | 16.6 |
| Max. DC resistance at 20℃ | ohm/km | 1.312 | 1.312 | 0.943 | 0.693 | 0.469 | 0.469 | 0.349 | 0.273 |
| Completed cable | | | | | | | | | |
| Approx. overall diameter | mm | 23.2 | 25.6 | 30.0 | 34.9 | 40.6 | 44.1 | 49.2 | 54.9 |
| Approx. weight of cable | kg/km | 470 | 560 | 740 | 980 | 1330 | 1580 | 1940 | 2410 |
| Packing length | m/drum | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 | 500 |
ADVANTAGE
CERTIFICATION
FACTORY SHOW
INSPECTION PROCESS
PACKING AND SHIPPING
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Product Tags:
|
|

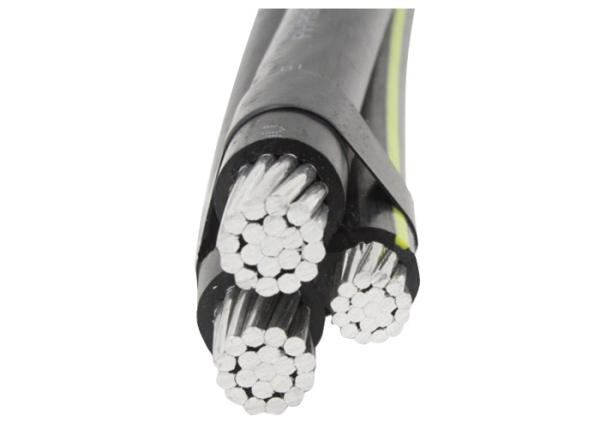

XLPE Insulated Aerial Bundled Cables Images
|
