Polyethylene Insulation 4 Core Aerial Bundled Cables 0.6KV / 1KV For Overhead Power Line

Product Categories

Shanghai Shenghua Cable (Group) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Polyethylene Insulation 4 Core Aerial Bundled Cables 0.6KV / 1KV For Overhead Power Line

Name: Polyethylene Insulation 4 Core Aerial Bundled Cables 06KV 1KV For Overhead Power Line
Brand: SHANCABLE
Price: 0.10 USD

Buy cheap Polyethylene Insulation 4 Core Aerial Bundled Cables 0.6KV / 1KV For Overhead Power Line product

Brand Name : SHANCABLE

Model Number : ABC-AL/PE-0.6/1KV-4 Cores

Certification : IEC 60502

Place of Origin : Shanghai, China

MOQ : 0.5km

Price : 0.10-20.99USD/m

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000km per month

Delivery Time : 10 days or more

Packaging Details : Wooden Drum or Steel Drum

Phase Conductor : Aluminium

Neutral Conductor : Aluminium Alloy

Cores Nos : 4

Rated Voltage : 0.6/1KV

Application : Overhead Power Line

Insulation : PE

Corporation : shenghua group

Brand : Sh Cable

Contact Now

Polyethylene Insulation 4 Core Aerial Bundled Cables 0.6KV / 1KV For Overhead Power Line

Aerial Bundled Cables without Street Lighting Conductor

Description

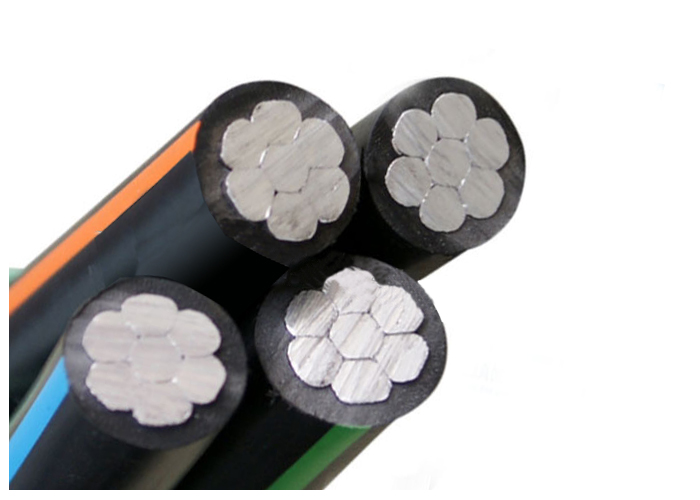

The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.

Construction

Conductor:

a) Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.

b) Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.

Insulation:

The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.

Schedule of technical particulars

Phase conductor
Nominal cross-sectional area	mm²	16	16	25	35	50	70	95	120	150	185
Number of cores		1	3	3	3	3	3	3	3	3	3
Minimum number of wires		6	6	6	6	6	12	15	15	30	30
Nominal insulation thickness	mm	1	1	1.2	1.2	1.4	1.4	1.6	1.6	1.8	2.0
Diameter of insulated core	mm	6.8	6.8	8.5	9.5	11.2	13.0	15.1	16.6	18.4	20.6
Max. DC resistance at 20℃	ohm/km	1.91	1.91	1.20	0.868	0.641	0.443	0.320	0.253	0.206	0.164
Current rating at still wind, ambient	A	61	61	84	104	129	167	209	246	283	332
temperature=30℃	A	61	61	84	104	129	167	209	246	283	332
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area	mm²	25	25	25	25	35	50	70	70	95	120
Minimum number of wires		6	6	6	6	6	6	12	12	15	15
Nominal insulation thickness	mm	1.2	1.2	1.2	1.2	1.2	1.4	1.4	1.4	1.6	1.6
Diameter of insulated core	mm	8.5	8.5	8.5	8.5	9.5	11.2	13.1	13.1	15.1	16.6
Max. DC resistance at 20℃	ohm/km	1.312	1.312	1.312	1.312	0.943	0.693	0.469	0.469	0.349	0.273
Calculated breaking load	kN	6.4	6.4	6.4	6.4	8.9	12.1	18.0	18.0	24.2	30.8
Completed cable
Approx. overall diameter	mm	15.3	19.0	23.2	25.6	30.0	34.9	40.6	44.1	49.2	54.9
Approx. weight of cable	kg/km	160	290	400	500	680	920	1270	1510	1870	2340
Packing length	m/drum	1000	1000	1000	1000	1000	1000	500	500	500	500
