ABC Aerial Bundle Cable With Street Lighting Conductor

Name: ABC Aerial Bundle Cable With Street Lighting Conductor
Brand: SHANCABLE
Price: 1 USD

Buy cheap ABC Aerial Bundle Cable With Street Lighting Conductor product

Brand Name : SHANCABLE

Model Number : JKLYJ,ABC

Certification : IEC 60502

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : negotiation

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 1000km per month

Delivery Time : 10 days or more

Packaging Details : Wooden Drum or Steel Drum

Product Name : Aerial Bundle Cable

Nominal Area of conductor : Power cable:10mm2 to 400mm2

Insulation : XLPE or PVC

Standard : IEC61089

Application : Overhead power line

Rated Voltage : 600/1000V

Cable Type : Class 2

type : ABC

Corporation : shenghua group

Brand : Sh Cable

Contact Now

ABC Aerial Bundle Cable With Street Lighting Conductor

Aerial Bundle Cable Constructions

1. Phase Neutral Street Lighting Conductor: Plain circular stranded alunimum or aluminum alloy conductor, according to IEC 61089.

2. Insulation: XLPE or PVC or PE Insulation.according to IEC 60502.

Aerial Bundle Cable Applications

The product is used for overhear power lines with rated voltage if 1KV

Aerial Bundle Cable Standards

International: IEC 61089,IEC 60502

China: GB/T 12527-2008

Other standards such as BS,DIN and ICEA upon request

Aerial Bundle Cable Technical data

Rated voltage: 0.6 / 1 kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃)

Min. Ambient Temp.: 0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D

Aerial Bundle Cable Certificates

CE, RoHS, CCC, KEMA and more others at request

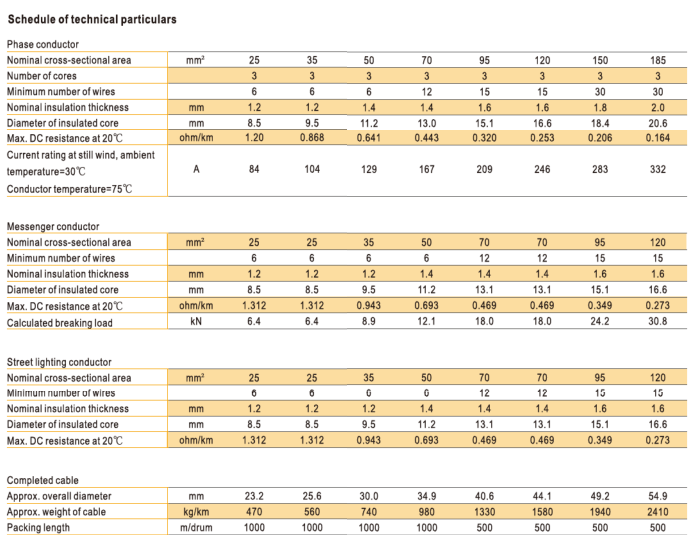

Aerial Bundle Cable Parameters

ABC Aerial Bundle Cable With Street Lighting Conductor

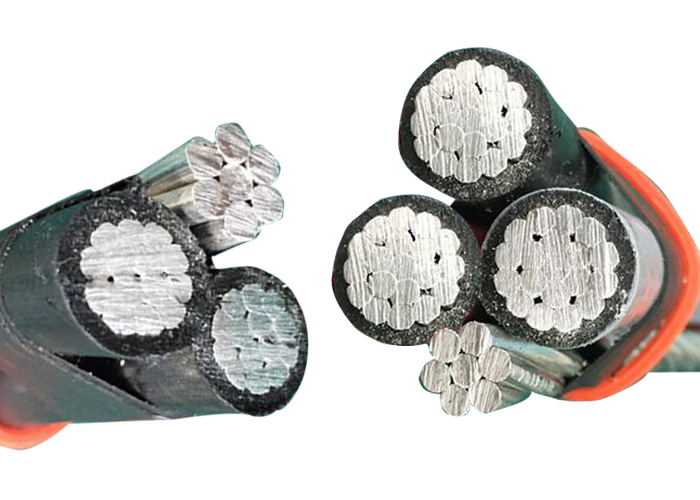

Pictures

ABC Aerial Bundle Cable With Street Lighting Conductor

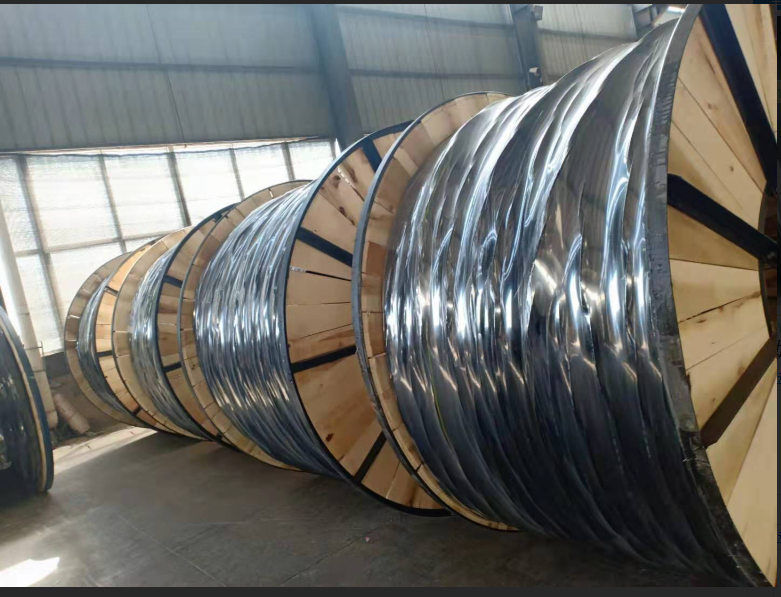

packing: wooden iron drums,

ABC Aerial Bundle Cable With Street Lighting Conductor
